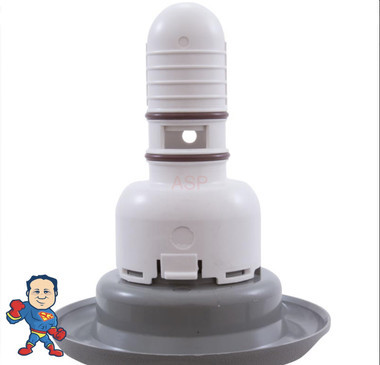

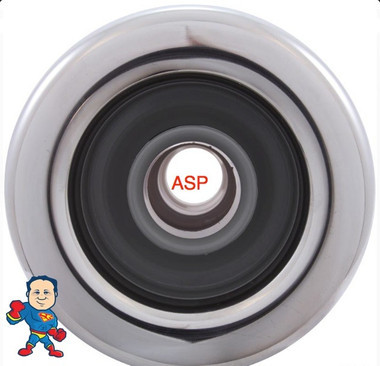

Waterway Whirlpool / Volcano jet with gray directional nozzle and stainless steel face. Used industry wide to provide a Volcano effect when mounted on the floor (dome) or it creates a whirlpool effect when mounted on the side wall. This adjustable jet has a 5" overall diameter and has an overall height of 6" when intact. A common failure of this jet is that the face separates from the diffuser (cone) which is usually left stuck in the jet body. In those cases you will need to remove the diffuser before installing this part. This jet in the adjustable style is in limited supply! replaces the non-adjustable style.
The Gulf Coast Spas Boca Grande 10000 used this jet in 2004 and 2005. Hydro Spa also used this jet in their Platinum Legend Spas, Mark III Series Solaris, Millennium, Stratus and Omni models.
| Installation Type | Snap In |
| Manufacturer | Waterway |
| Jet Part Type | Internal |
| Model | Whirlpool |
| Face Diameter | 5" |
| Diffuser Opening Type | 8 |
| Nozzle Diameter | 1-3/8" |
| Base Diameter | 3-1/8" |
| Total Length | 6" |
| Diffuser Length | 2-15/16" |
| Color | Stainless Steel/Gray |
| Internal Type | Directional |
| Face Style | Smooth |
