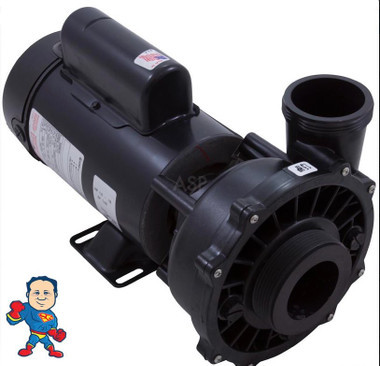

The Waterway Executive dual-speed circulation pump delivers reliable performance with a 1.5HP motor operating on 115V power. Current draw measures 13.3 Amps on high speed and 4.1A on low speed settings.
This 48 Frame model features 2" X 2" plumbing connections with threaded ports measuring approximately 3" edge to edge. Built-in thermal protection safeguards the motor from overheating while the adaptable wet end design ensures long-term durability.
Key Product Highlights:
- Executive wet end engineered for compatibility with 48-frame motors
- Oversized 6-1/2" diameter wet end delivers superior head pressure
- 2" intake and discharge ports
- Rotatable wet end simplifies installation positioning
- Thermal protection system extends motor longevity
- Unit Dimensions (H x W x L): 8.34" x 8.13" x 15.20"
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o'clock |
| Pump to Motor Foot Types | 4a |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16"od |
