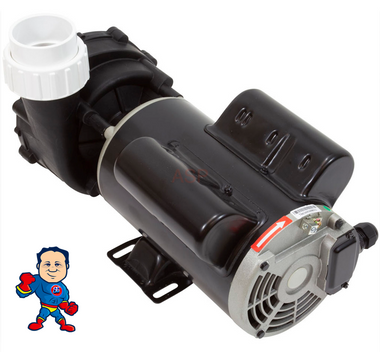

This part is a 48WUA1001C-II 48Fr LX Pump 2" X 2" 1.5HP 2 Speed 115V WUA100. This 48 frame pump assembly has an adjustable side discharge wetend. The union fittings on this pump will measure 3" across teh male thread. Cam be used as a generic replacement for the Aqua-Flo XP2 pump.
Note: If your original Pump has this on the back with a hose attached none of my pumps will have that nor will they be able to accept this part from your old pump.. You will save 100's of dollars over the original pump with that attachment that is only used to put heat from the motor under the tub and I believe the motors stay cooler without that device and last longer..
| Motor Voltage | 115v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 10.3A/3.8A |
| Horsepower | 1.5hp |
| Manufacturer | Lingxiao (LX) Pump |
| Pump Model | 48WUA |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
