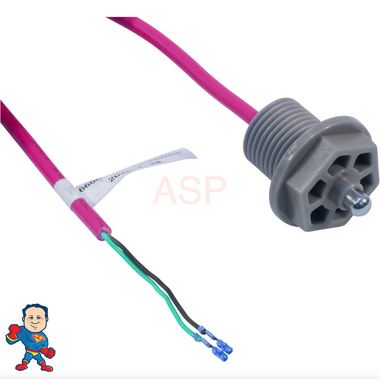

This part is a Temperature Sensor found in some Jacuzzi J-Series and Sundance hot tubs that have Curled Finger Style connector..
See the pictures for the Curley finger style examples to determine if yours is that style..
This sensor is used primarily in the Jacuzzi J-Series systems, however it was also used in the Sundance 1998+ 701, 724, 2005 780/850E, 2006+ 780/680 systems as well.
Sundance used this sensor on the 701, 724, 780, 860 controls in various years starting in 1998. Usually found mounted to the side wall of the spa near the filter on Sundance spas.
This sensor does not include the o-ring. We do carry that o-ring here: O-Ring for Sensor, Temperature, Sundance, 800, Jacuzzi, J-Series, Premium
| Sensor Application | Spa Control |
| Sensor Type | Temperature |
| Application | Jacuzzi |
| Model | J-Series |
| Connector Type | Curled Fingers |
| Sensor Diameter | 3/8" |
| Wire Count | 2 wire |
| Wire Length | 12ft |
