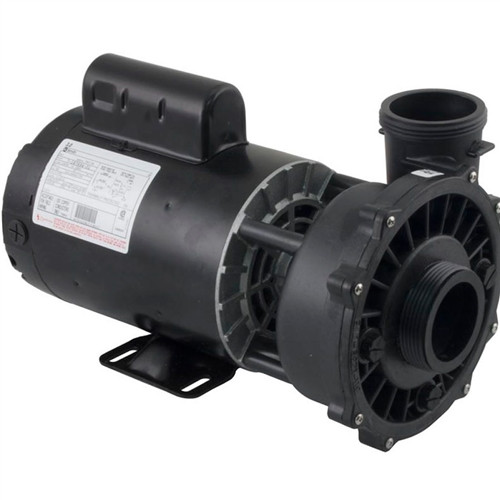

Side discharge pump assembly for the Pilates H2O XP-1, XP-2 and XP-3 models. For Pilates models this 2 HP pump is used for the massage chairs. Also used in many Tatum Mfg. versions of Shoreline Spas - Models 400, 500, 700 and 800. This 2 speed version replaces the discontinued single speed style - simply wire up the high speed only. Can also be used as a generic replacement for many other hot tub brands of similar specs.
Please Note: This pump assembly doesn't include the power cord. On Shoreline Spas (Tatum mfg only) 12.0 amp motors were used with a 2 HP wetend - this pump is the replacement for it.
| Motor Voltage | 230v |
| Speed | 2 Speed (3450/1725 RPM) |
| Motor Amperage/Wattage | 8.0A/3.0A |
| Horsepower | 2.0hp |
| Manufacturers | Tatum Mfg - Pilates H20, Shoreline |
| Models | XP1,XP2, XP3, SL400, SL500, SL700, SL800 |
| Suction Pipe Size | 2" (3" thread diameter) |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" (3" thread diameter) |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 56 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
IMPORTANT MOTOR VARIATION NOTICE
Due to ongoing changes in the hot tub pump industry since COVID, motor appearance and configuration may vary, even when the part number is the same. While the pump wet end will be correct, the motor may differ in areas such as capacitor location, labeling, or housing.
If you have a specific motor requirement (clearance, capacitor position, orientation, etc.), you must contact us before ordering so we can verify availability. Do not order first and contact us after delivery due to appearance differences.
Motor variations are outside of our control and may change week to week. Appearance differences do not constitute an incorrect item if specifications are met.
