Single speed air blower in 1.5 HP that can replace virtually all underskirt and some outdoor blowers regardless of brand. We recommend verify your current motors sizing against the dimensions provided below to ensure fit in your housing
AKA/Replaces: ASF3015201, T152-352211112, 609720, 9270-01, 1.5220BLR, 70-01670, HHP152-2STF, 13-0004, 116312, UDS1054
AS3015201 Features:
- 1.5 HP Single Speed
- 230 Volt, 4.0 Amp
- 5-3/4" height top to bottom
- 2-3/4" lower fan housing
- Outside diameter of 5-7/8"
| Blower Motor Horsepower | 1.5hp |
| Motor Amperage | 4.0A |
| Voltage | 230v |
| Blower Amperage | 4.0A |
| Phase | 1 Phase (1ph) |
| Blower Motor Style | Standard |
| Speed | 1 Speed (1-Spd) |
| Horsepower | 1.5hp |
| Manufacturer | Ametek |

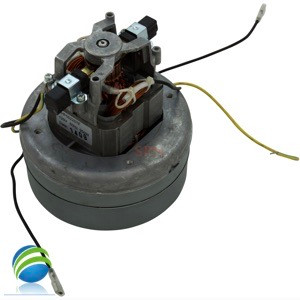

The way you figure out which motor you need is you measure the Width & Height of the motor.
Look at the picture for examples of what to measure, the you figuire out what voltage 115V or 230V
and don't guess at the voltage because wiring in the wrong motor could damage the motor and the board.
Last look for the Horse Power and Amperage note that usually the first measurements will tell you what
Horse Power and Amperage you need. Look at the chart for motors by these variables.
