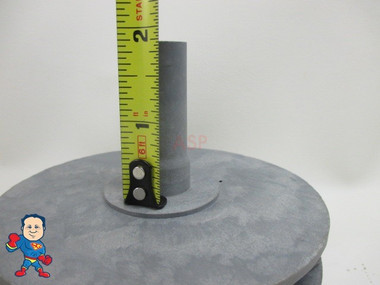

Vico/Balboa Ultima/Ultra Flo Pump Impeller
Closed face impeller made for the Ultima and Ultra Flo spa pumps by Vico/Balboa. Rated at 3/4hp, it is used in an Ultima and/or Ultra Flo pump wet end, and must be installed on a 3/4hp (or greater) thru bolt motor. Shaft seal sold separately
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4" |
| Vane Width ID | 3/16" |
| Eye Diameter OD | 2" |
| Eye Length | 5/16" |
| Impeller Width OD | 7/16" |
| Seal Seat Depth | 1/8" |
| Shaft Length | 1-7/8" |
| Shaft Diameter OD | 11/16" |
| Seal Seat Diameter OD | 1-1/2" |
| Manufacturer | Vico/Balboa |
| Pump Application | Ultima, Ultra-Flo |
