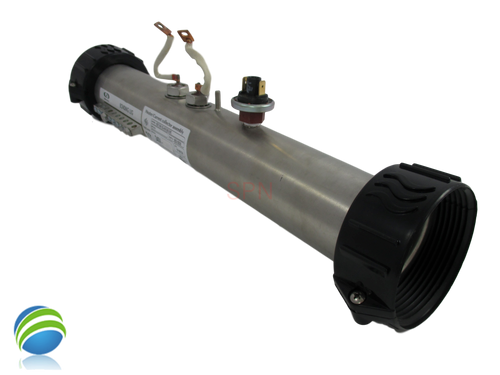

You are buying a Complete Replacement 5.5KW Heater Assembly that fits a Gecko SSPA or Spa Builders Pack. This Heater Assembly includes the Tube, Element, Split nuts, pigtail wires and Gaskets. The new version of this heater includes dettached pigtail wires to connect from the element terminals to the circuit board - everything you need for a clean installation. Your bonding lug will get transferred from your old heater to this new one.
The Pressure Switch is no longer included with this assembly but we have it here: Universal DTEC Hot Tub and Spa Pressure Switch, Small, 1 Amp
NOTE: If you have the old style SSPA board with the soldered on tabs like you see in the picture above this heater will work... simply disregard the included pigtails or click here for that model:
I also offer the element only or the pressure switch for this SSPA Pack in our store. Watch the video for more detailed information. We have plenty of these.
| Housing Configuration | Straight |
| Heater Length | 15" |
| Lead End Terminal Location | 5-3/4" |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 9-7/8" From Leading End |
| Kilowatts | 1.5kW, 5.5kW |
| voltage | 115v, 230v |
| Sensor Stud Orientation | None |
| Mounting Stud Type | Fixed |
| Heater Size | 2" |
| Heater Application | Gecko |
